Garden Roll Top Triangle Bending Brc Welded Mesh Fence Panels Galvanized

Product Categories
Hebei Qijie Wire Mesh MFG Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Garden Roll Top Triangle Bending Brc Welded Mesh Fence Panels Galvanized

  • 1
  • 2

Brand Name : QIJIE

Model Number : QIJIE01

Place of Origin : CHINA HEBEI

MOQ : 1000

Price : 500

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10000

Delivery Time : 10 days

Packaging Details : button

Type : Fencing

Feature : Easily Assembled

Metal type : Iron,Steel,Aluminum,Iron or galvanized

Frame finishing : PVC Coated,Powder Coated

Frame material : Metal

Color : white,black,Green,blue

Surface treatment : Galvanized+PVC Coated,PVC coated,Hot Dipped Galvanized

Application : Fence Mesh,Garden

Mesh size : 50x100mm,200mm*50mm / 150mm*50mm/100mm*50mm,50x200 mm

Usage : Protection,Garden Decoration,building,Garden Fence/highway/airport

Width : 1500mm ~ 3000mm

Height : 1030mm ~ 2230mm,1.2 m,1030mm / 1230mm / 1430mm / 1630mm / 1830mm / 2030mm / 2230mm,1.8 m,2.0 m

Wire diameter : 3-8mm,4.5mm,2.5-6mm,5.0mm

Wire gauge : 2.5-6mm,1.0mm-3.0mm,2.0-4.0mm

Contact Now

Garden Galvanized Roll Top Triangle Bending Brc Welded Fence Mesh Fence Panels

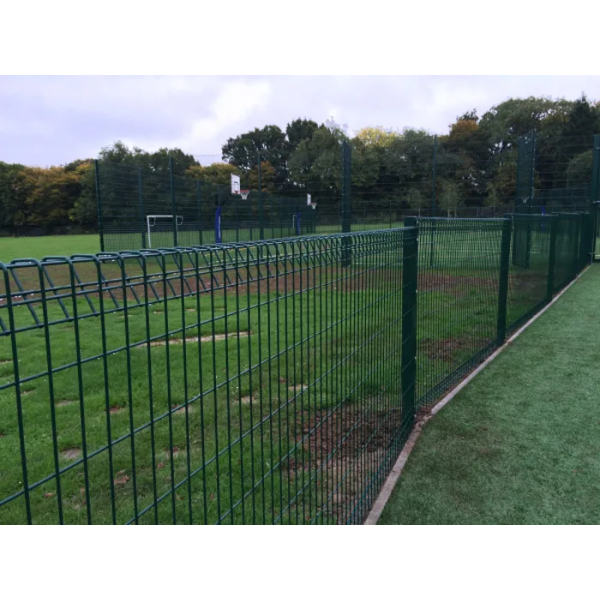

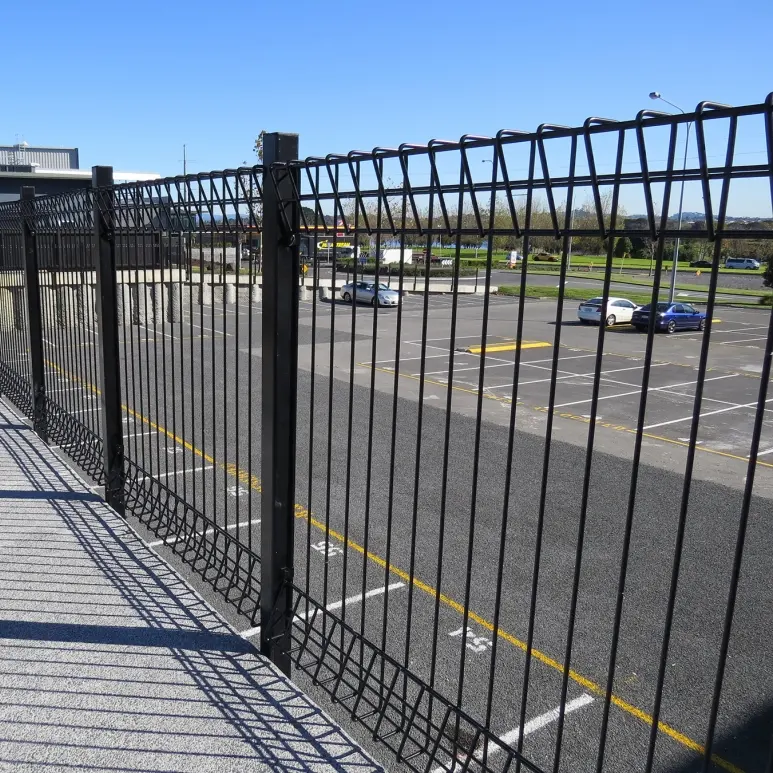

Roll top fence
Roll top fence, using a friendly round top and "trigonal" edges bottom to form a rigid fence. The surface treatment of Shengcheng roll top fence and double loop fencing is hot dipped galvanization or electric galvanization + polyester powder. The fittings of roll top fence and double loop fencing are round post or square post. We recommend these fence for park, school, playground, stadium etc.
Garden Roll Top Triangle Bending Brc Welded Mesh Fence Panels Galvanized
Garden Roll Top Triangle Bending Brc Welded Mesh Fence Panels Galvanized

BRC fence specification:

Height(mm)
1000, 1200, 1500, 1800, 2000, 2500
Post distance(mm)
2500, 3000
Wire diameter(mm)
4.0, 5.0, 6.0
Mesh size(mm)
50 x 150; 50 x 200; 75 x 150
Post(mm)
Round: 48, 60; Square: 50 x 50, 60 x 60, 80 x 80
Material
low carbon steel
Surface treatment
hot dipped galvanized; polyester powder coating; PVC coated
Color
RAL Green or Black, or as your requirement.
Other specification are available on request.
Garden Roll Top Triangle Bending Brc Welded Mesh Fence Panels Galvanized
BRC fencing panel:

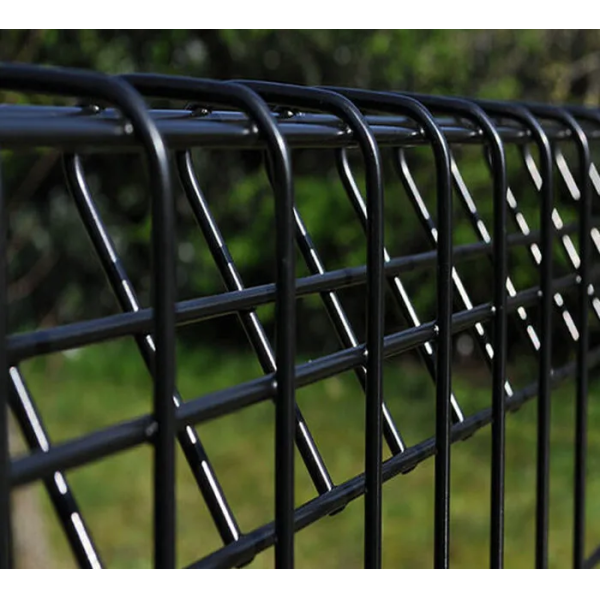

The panels consist of a unique and attractive, closed beam section located along the top and bottom edge of the panel. It is user friendly with no sharp or raw edges. These type of fencing panels are ideal where safety is a consideration.
Garden Roll Top Triangle Bending Brc Welded Mesh Fence Panels Galvanized
Garden Roll Top Triangle Bending Brc Welded Mesh Fence Panels Galvanized
BRC fence feature:

• Aesthetic appearance.

• High rigidity.

• Excellent through vision.

• Wide range of color options.

• Available as a complete system
Application
Garden Roll Top Triangle Bending Brc Welded Mesh Fence Panels Galvanized
Garden Roll Top Triangle Bending Brc Welded Mesh Fence Panels Galvanized
Garden Roll Top Triangle Bending Brc Welded Mesh Fence Panels Galvanized
Specification
RBC fence Installation:
Roll top fence is also kind of easy installation production. Need to follow the normal installation process of metal fence products. We will give an example of the BRC fence installation based on 2.5m width.

1.Measure the roll top fence width of per set, calculate correctly if need to install all post together. Setting up the post into the holes on the ground every 2.5 linear meter. If the ground is concrete, we need to set up the post flange plate with M10 (min) anchor bolts into the concrete ground. During measure process, please make sure the line is straight or it is followed your plan.We can not change it after setting up the post.

2.Take the roll top fence panel out and stand up close to the fence panel. Need to make sure there is little space between the BRC fence panel and post. It should be touch or has very small space which will not affect setting up the V clips.

3.Setting up the V clips by vertical distance according to the punched holes on the post. Normally it is about 450mm or 600mm for per V clip. If the bolts are self drilling bolts, then we do not need any holes on post, just drill the bolts into the post wall accordingly.

4.Installing post rain cap on the top of the post in the end. If the height of roll top fence is too difficult for installing post cap, please set up the post cap first before set up the post. If the post cap is metal cap and already been welded on the post, then do not need to do any work on the post cap installation.
Garden Roll Top Triangle Bending Brc Welded Mesh Fence Panels Galvanized
Garden Roll Top Triangle Bending Brc Welded Mesh Fence Panels Galvanized
Packing & Delivery
Garden Roll Top Triangle Bending Brc Welded Mesh Fence Panels Galvanized
1. in bulk 2. plastic film or woven on both of the sides 3. on pallet 4. customized


Product Tags:

Galvanized Welded Mesh Fence Panels



Brc Welded Mesh Fence Panels



50x100mm Welded Mesh Fence Panels
