950mm Coil Diameter Razor Barbed Wire , Construction Galvanized Iron Wire

950mm Coil Diameter Concertina Razor Barbed Wire

Welded razor barbed wire is flat, so it looks aesthetically and can be used in places for people or car security where has more people. Welded razor wire mesh is a grid that has cells in the form of lozenges, made of razor barbed reinforced tape. Most welded razor wire is a canvas, rolled up in rolls.

The multiple blades of a razor wire fence are designed to inflict serious cuts on anyone attempting to climb through and therefore have a strong psychological deterrent effect. In many high-security applications, barbed tape supplanted barbed wire, which could be circumvented relatively quickly by humans with tools, while penetrating razor wire barriers without tools is very slow and difficult, giving security forces more time to respond. Razor wire contains a core hardened steel strip that is often under tension, so if cut, it strikes the cutter.

Blade thickness. 0.5mm is the industry standard, anything less is likely to bend easily.

Coil extension length. The length the coils can be extended to is determined by the number of loops and clips each type of coil has. Generally most coils extend to between 9m and 13m comfortably without compromising the profile density.

Material

Electro galvanized core wire and blade
hot-dipped galvanized core wire and blade
Stainless steel core wire and blade
PVC coated core wire and blade
Or hot-dipped galvanized core wire+stainless steel blade

[ Zinc Coating Class ]
The coating class shall comply with the standard of Zinc EN 10244-2,shall be specified with the order.

Hot-dipped galvanized zinc coating grade:
Grade C: Wire 60-80g/m2 Blade:60-80g/m2
Grade B: Wire 80-120g/m2 Blade:100-150g/m2
Grade A: Wire 160-200g/m2 Blade:230-270g/m2

Different size have different loops , different clips ,
please confirm which one do you need , so that we can give you reasonable price .

Features:
Razor barb available in single strand, concertina and flat-wrapped

This concertina wire specifications: The wire blade common styles include blade tape (BT): BT-60, BT-30, BT-22, BT-20, BT-18, BT-15, BT-10.

Function:

annealed binding wire

galvanized tie wire

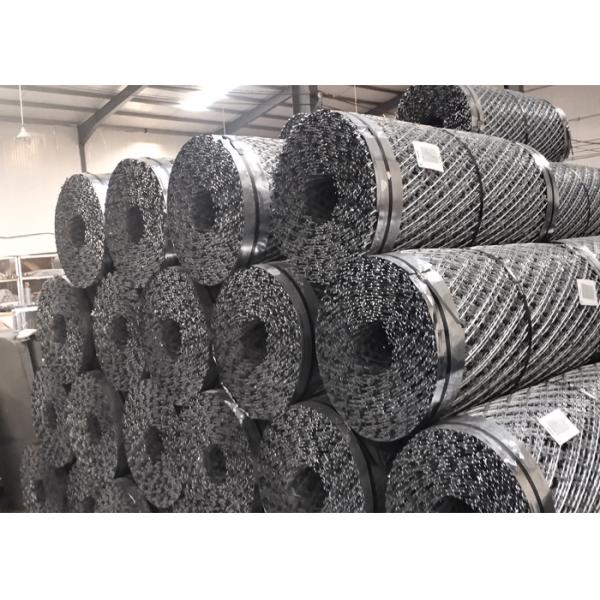

950mm Coil Diameter Razor Barbed Wire , Construction Galvanized Iron Wire Images
